Loading Documents in the ADF (Auto Document Feeder)

Note

• To scan a document at optimum quality, load it on the platen.

1. Make sure any original has been removed from platen.

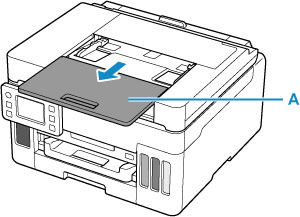

2. Pull out the document tray (A) until it stops.

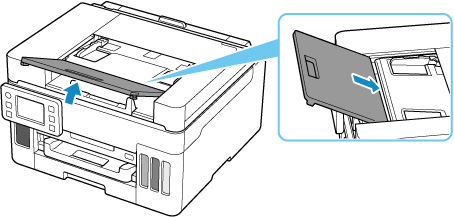

3. Raise the document tray until it stops and insert it obliquely.



4. Slide the document guide (B) all the way out.

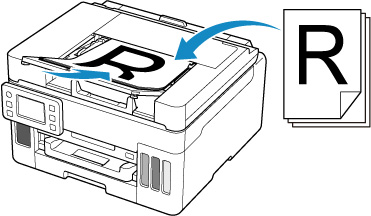

5. Insert document WITH THE SIDE TO SCAN FACING UP in document tray, until you hear a beep sound.

   Insert the document until it stops.



   Note

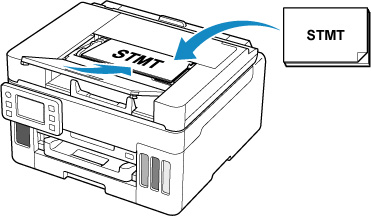

   • If you load the statement size document, load it in landscape orientation.



   • For details on the supported originals, see below.

     • Supported Originals

6. Adjust document guide to match width of document.

   Do not slide the document guide too tightly against the document. The document may not be fed properly.

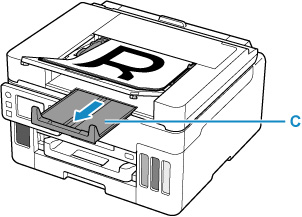

7. Pull out document output tray (C).
